HI-FILTER SYSTEM

Rationale and Definition

Company Name J-E TECH CO., LTD.
Product Name HI-FILTER SYSTEM
Model
HS Code 8421..
Characteristic

    - Features & Advantage

    · Electrostatic precipitation + Bag filtration → Hybrid filtration device

    · Combining two equipments into single chamber → Simple structure, less installation space

    · The optimized dust collector for fine dust (PM10, PM2.5), 99.9% collecting efficiency

    · Since more than 90% of the charged dust particles by electrode are removed by a collecting plate first, It can minimize the load on filtration and dust collecting. The remaining fine dust is removed by the bag filter through flocculation. Through pulse air, the fine dust that has fallen from the bag filter is attached to the collecting plate.

    1) The rapping cycle of the collecting plate and pulsing cycle of the bag filter is lowered which reduces operating and maintenance cost.

    2) Charged dust flocculated and collected on plate → Increased fine dust collection efficiency

    - Applicable fields

    · Power plant

    · Cement and lime manufacturing factory

    · Fine dust generating factory

    · Waste treatment plant


Keyword(Tag)

Field

Field Detail
Field
대기 > 공기질 측정/분석

Certification

Certification Detail
Certification Type Certification Year Certification Type Certification Year
NET 2014

Supply Performance

Supply Performance Detail
Period Delivery Destination Delivery Volume

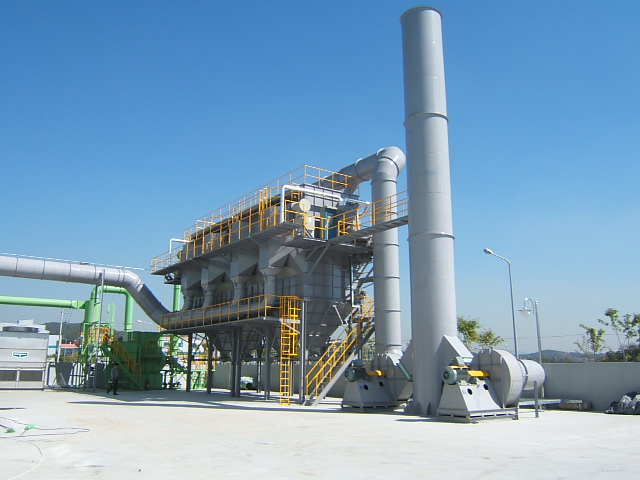

2011.05. ~ 2014.09 Supply HI-FILTER SYSTEM(240,000CMH) of demonstration facility to Seocheon power plant of Korea Midland Power Co., Ltd.. -
