Particulate Monitor
Rationale and Definition
| Company Name | APM Engineering Co., Ltd. | ||
|---|---|---|---|
| Product Name |

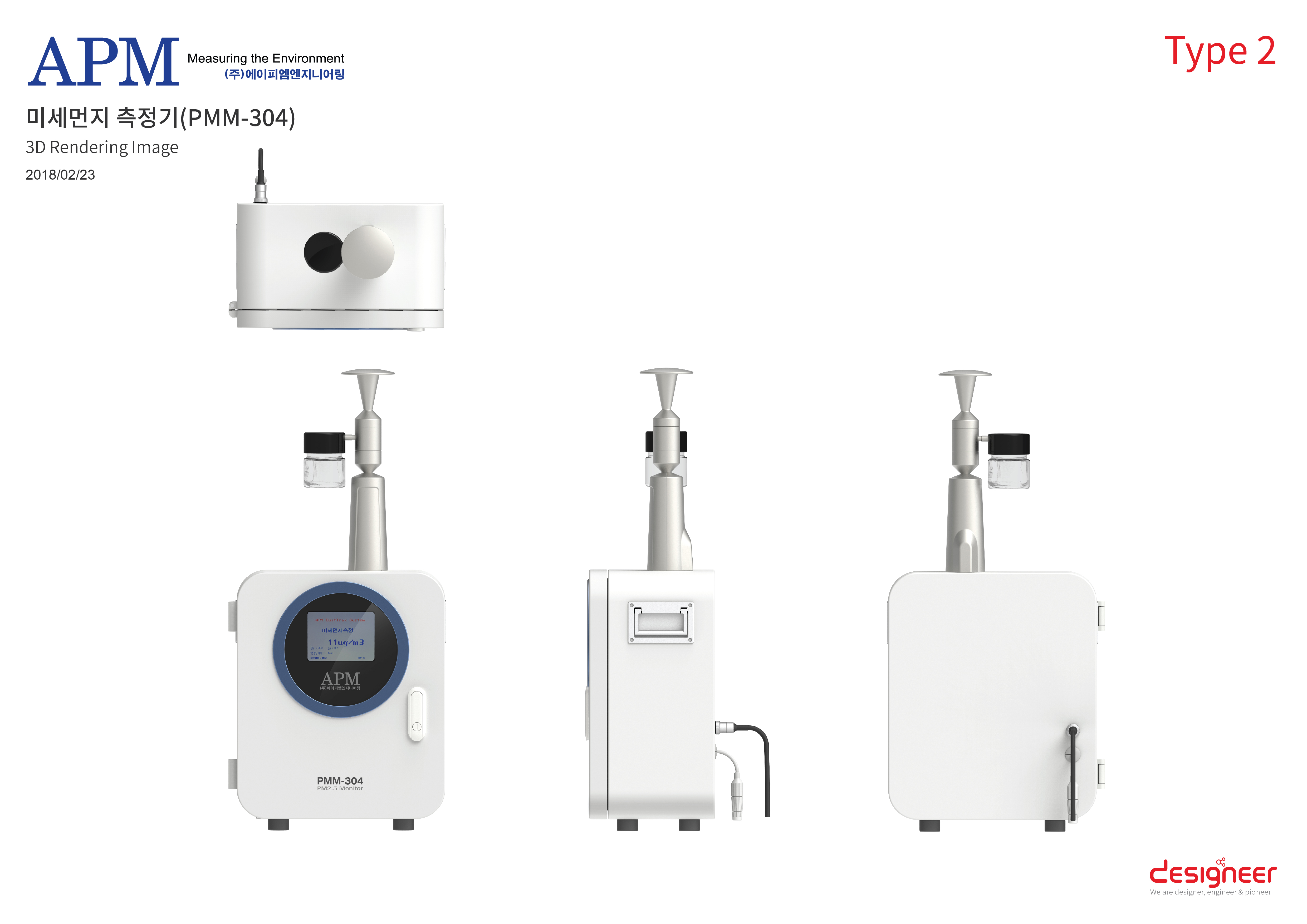

Particulate Monitor
|
||
| Model | PMM-304 | ||
| HS Code | |||
| Characteristic |
- Real-time measurement of mass concentration of fine dust in air - Real-time measurement of fugitive and site boundary fine dust - Continuous monitoring of fine dust emission sites - PM Total, PM2, PM2.5 or PM10 mass concentration can be measured - 90 angle light scattering laser photometer method - Real time monitoring Wi-Fi data transmission - Range : 0.001 to 400 mg/m3 - Resolution : ± 0.1% of reading or 1㎍/m3, whichever is greater - Zero Stability : ± 2㎍/m3 per 24 hours at 10 sec time constant - Sample Flow Rate : 3.0L/min (±5% of factory set point, internal flow controlled) - Detection Method : Light scattering laser photo - Zero-Calibration 15 minute cycle - Application : PM10, PM2.5, Simultaneous PM Total, pm10, PM2.5 and PM1.0 - Concentration Range : 0~400mg/m3 , 0-150mg/m3 - Resolution : ±0.1% of reading or 1㎍/m3, whichever is greater - Zero Stability : ±2㎍/m3 per 24 hours at 10sec time constant - Sample Flow Rate : 3.0L/min(±5% of factory set point, internal flow controlled) - Detection Method : Light scattering laser photometer, 90angle off-axis detector - Gravimetric Sampling : Removable 37mm catridge - Operating Environment : -20 to -50 with enclosure geater : - to 100% RH - Communications : Wireless : Cloud service capability via Netronix Thiamis 1000 Quad-Band 3G/GPRS Modern, including Wi-Fi and Bluetooth(Optional) |
||
| Keyword(Tag) | |||
Field
| Field |
|---|
| 대기 > VOC/악취 |
Certification
| Certification Type | Certification Year | Certification Type | Certification Year |
|---|---|---|---|
| No Data. | |||
Supply Performance
| Period | Delivery Destination | Delivery Volume |
|---|---|---|
| - | Gyeonggi Provincial Institute of Health and Environment | - |
